MODEL/TYPE: TYPE #1A - SERIES 'M'
AGE: 1970's
SPECIFICATIONS & DESCRIPTION:

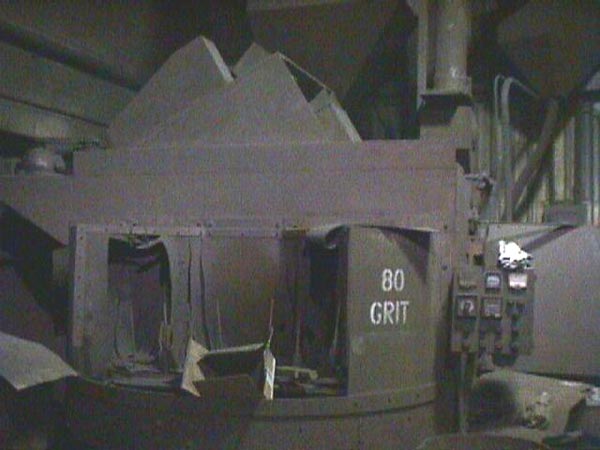

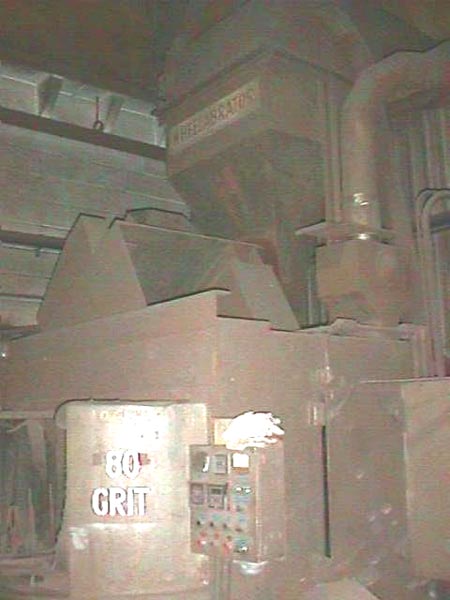

High Capacity Type 'M' Wheel Machine - Approx 72" Dia rotary table
Equipped with (6) 24" Dia rotary tables - Equipped with(2) Blast wheels
Tables are equally space on the larger 72"D table / Rotation is via
v-belt spinner
Work Capacity / per station/table: approx 28"Dia x 15"H (above table)
Design: - smooth conical inlet type impeller
Equipped with CFS Abrasive Separator system - Table indexing feature
Cabinet is fabricated of heavy steel plate material
Tables are 1" thick solid steel plate
Approx gross weight & dimensions: 12,000 #
Overall Machine Dimensions: approx: 9'W x 9'D x 12'H
Ventilation requirements: 1700 - 2250 CFM exhaust
Equipment & Special Features:
Abrasive Recycling system
Media Elevator system
Separator system
Abrasive Trap to limit materials expelled thru Dust Collector

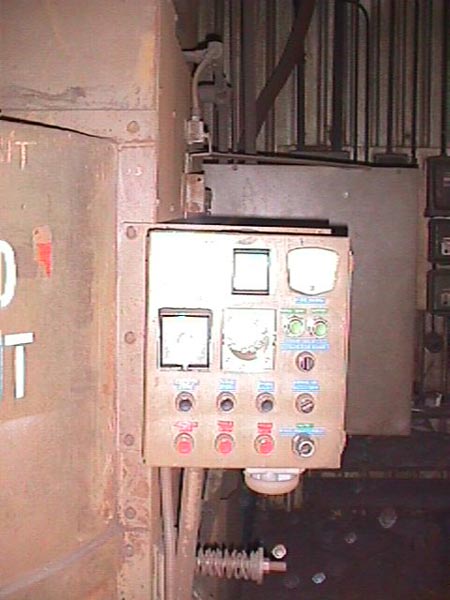

Built-in operator safety features
Inspector Door w/micro-switch stops built-in
Cycle counter device
Designed for quick 'Load & Go' type production operation
CONDITION: Machine is in very good condition - presently set-up and
operating in plant
ELECTRICS: 15 HP wheel motor/1800 rpm, 1HP elevator & Mill drive motors
(1800 rpm)
2 HP / 1800 rpm hoist brake motor: 220/440V - 3 ph - 60 Hz
