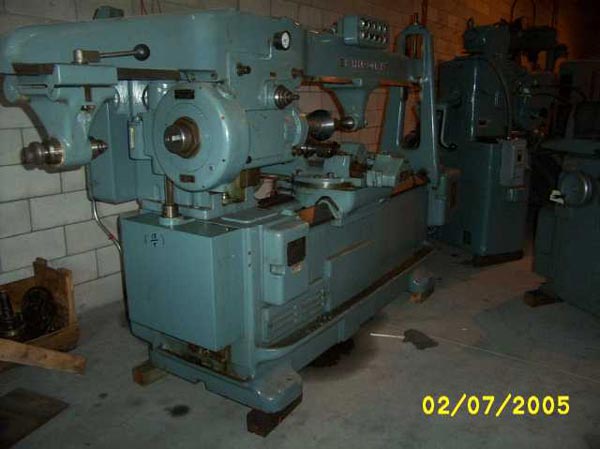

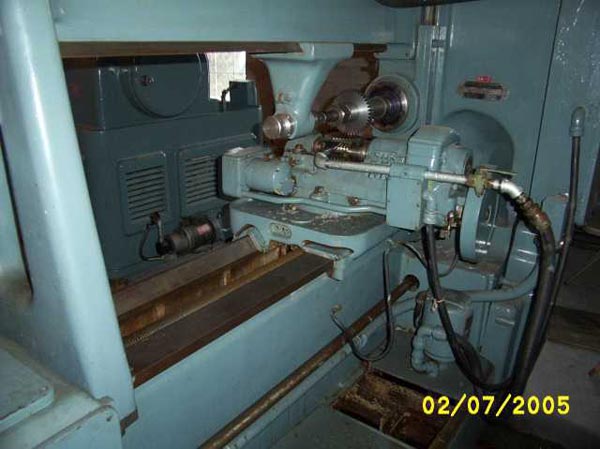

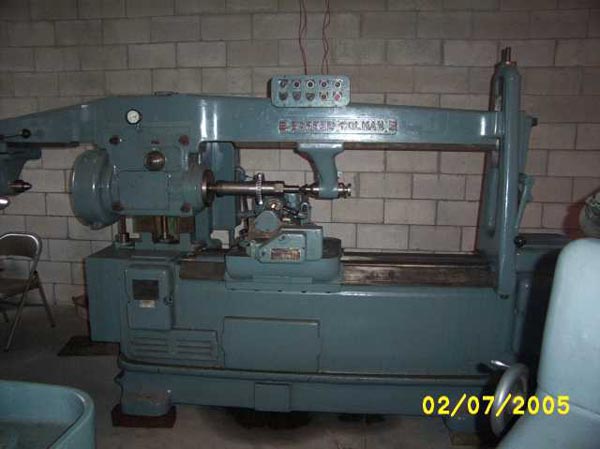

Model No. 16-36
Age: 1951
SPECIFICATIONS AND DESCRIPTION:
Machine Frame Type/style: 'A' Style Overarm support
Rated Pitch: 6 DP
Max work diameter: 16"
Work spindle face to tailstock center: (max work piece length) 36"
Max hob diameter: 5"

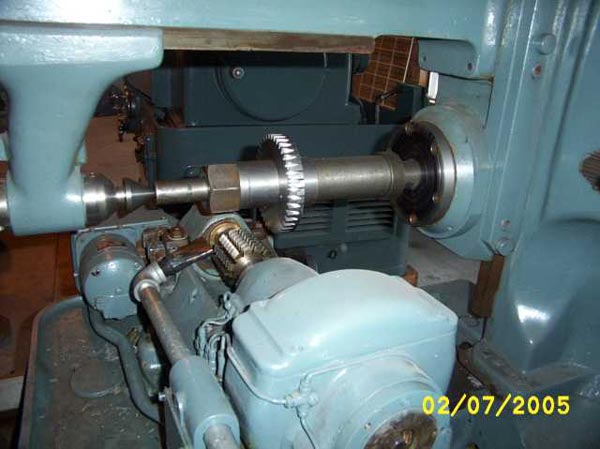

Diameter of Hob Arbor: 1-1/4" Dia
Hob Speed Range: (depending on change gears used) 50 - 450 RPM
Max hob swivel range: 45 deg. left or right
Max hob shift travel: 3-1/2"
Hob Arbor Work center Dia: 1-15/16" dia
Spindle bore diameter: 4-3/16"
Minimum/Maximum no. of teeth that can be hobbed: 5 min / 300 max
Single Thread Thread Index Worm Gear type machine:
Coolant System capacity - 15 gallons
Equipped with:
Single Thread index type hine

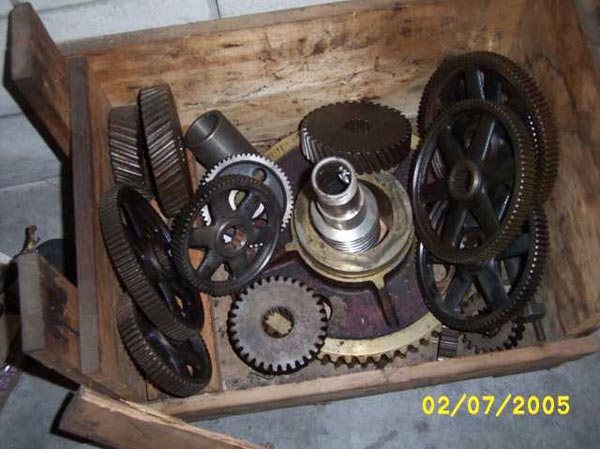

(10) Index & (5) speed change gears
Hob shift feature
Extra Worm gear included
Coolant System
Screw Type Tail-stock center
Extension attachment: Behind the head stock - overarm extension
w/screw type center for extended work lengths thru the spindle
ELECTRICS: 7-1/2 HP Main Drive Motor Rapid traverse 2 HP / 220/440V
3Ph / 60Hz
Coolant Pump motor 1/2 HP Lube Pump Motor 1/20 HP
LOCATION: Canadian Plant - near Montreal
