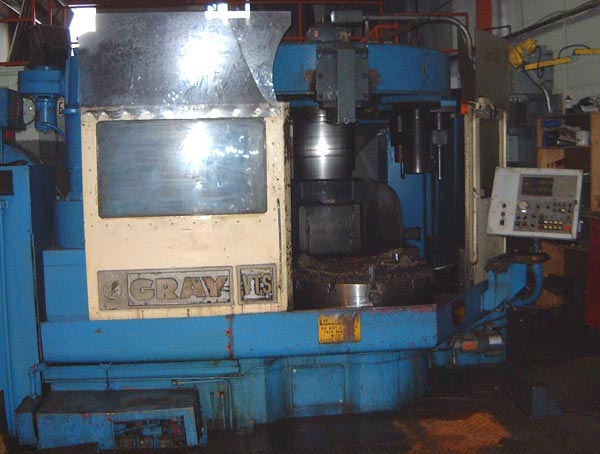

MODEL: Model VTS - w/1999 Mitsubishi CNC Retrofit
Age: New 1979
Equipped with ATC system
SPECIFICATIONS AND DESCRIPTION:
Maximum Swing inside Guards: 46" Dia
Maximum Clearence under tool Ram: 50-1/2" vertical clearance
Table chuck type & size: 3 Jaw, Hydraulic / 'T' slotted: 40" Dia
Spindle speed range: 4 - 400 RPM

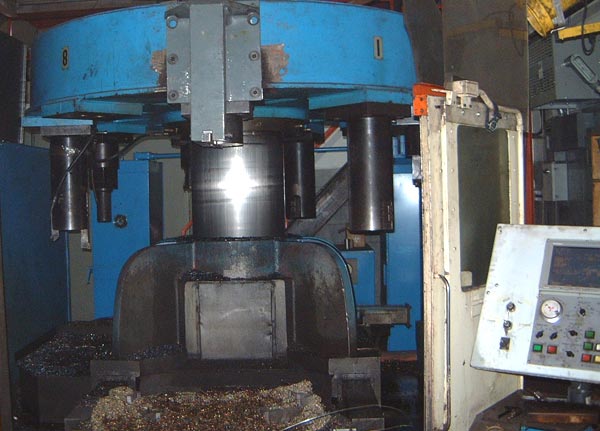

Automatic Tool Changer system (9 position ATC)
Automatic lubrication system
Table speed indicator - RPM meter
Chip guards & Full Work Area Enclosure
Electric SCR feed drives - direction direct coupled
Hardened and ground rectangular ways - Hardened and ground ball screws
Flood Coolant System w/coolant distributor - Full Way Covers
Chip Conveyor system - Some Tooling Included
ELECTRONICS:
Equipped with Mitsubishi Model 520 CNC computer control system / multi
axis control
Machine is operating as a 2-Ax machine with the ATC computer controlled
Linear and circular interpolation - MDI System - Full CRT -
pendant type control arrangement
ELECTRICS:
75 Horsepower main spindle drive motor
DC - SCR type spindle drive system
240/480 volt - 3 phase - 60 hz
CONDITION: In plant set up where it may be seen in operation. Machine
was re-manufactured in 1999 (mechanically & retrofitted with new
Multi-Axis Mitsubishi CNC control system)
