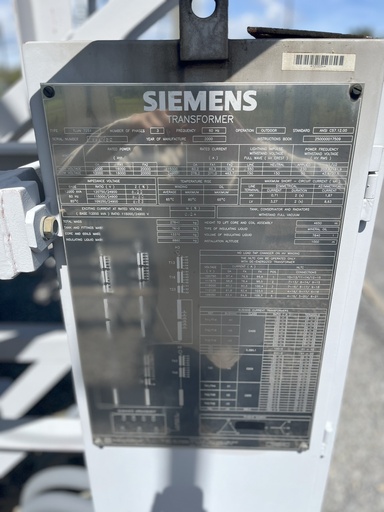

ONE (1) 12/16/20 MVA Siemens Substation Transformer, 3 PHASE,
60 HZ, OA/FA1/FA2, 65 Degree C RISE, 8.22% Impedance,
All CU Windings, Oil filled, Top-Top bushings, Oil Conservation System
HIGH VOLTAGE: 115000 Delta BIL: 550 KV
LOW VOLTAGE 1: 24900 WYE BIL: 150 KV
HV TAPS: 120750-117875-115000-112125-109250
TOTAL WEIGHT: 61377 LBS.
CORE & COILS: 29475 LBS.
TANK & FIT.: 16777 LBS.
OIL: 15123 LBS. (2071 GAL)
