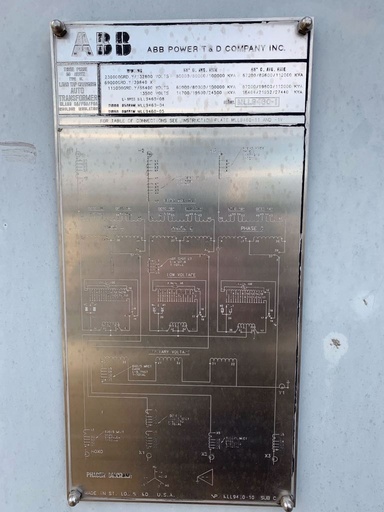

One (1) 60/80/100 MVA ABB Dual Secondary LTC Autotransformer
3 ph, 60 Hz, OA/FOA/FOA, 55/65 Deg C Rise, Dual Primary, LTC,
All Copper Windings, 13.73% Impedance, Liquid Level Gauge,
Liquid Temp Gauge, Vacuum Pressure Gauge, Pressure Release Valve,
Drain & Sample Valve, Top-Top Bushings
HV1: 230000 GrdY BIL: 900 KV
LV1: 115000 GrdY BIL: 450 KV
LV2: 69000 GrdY BIL: 350 KV
TERTIARY: 13800 DELTA BIL: 110 KV (14700/13600/24500kVA)
HV1 Taps: TBD
LV1 Taps: +/- 0.625% in 32 steps
LV2 Taps: +/- 0.625% in 32 steps
CORE & COIL WEIGHT lb
TANK & FITTINGS WEIGHT lb
FLUID WEIGHT lb
FLUID GALLONS gal (US)
TOTAL WEIGHT lb
