T-6314

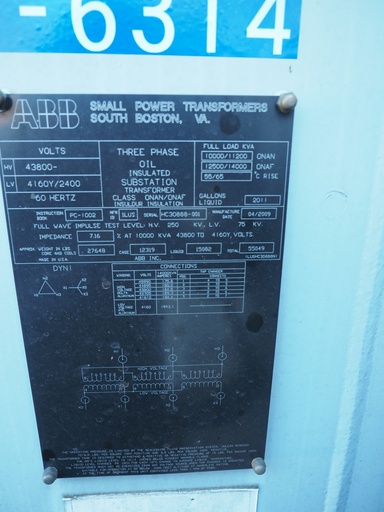

One (1) 10/11.2/12.5/14 MVA ABB Transformer,
3 Ph, 60 Hz, ONAN/ONAF,
55/65 Deg C Rise, 7.16% Impedance,
Top-Top Bushings, Liquid level Gauge, Liquid Temp
Gauge, Vacuum Pressure Gauge, Pressure Relief Device,
Drain & Sample Valves, Mineral Oil Filled
HV: 43800 Delta BIL: 250 kV
LV: 4160 Wye BIL: 75 kV
Taps: 45990-44895-43800-42705-41610
CORE & COIL WEIGHT 27648 lb
TANK & FITTINGS WEIGHT 12319 lb
FLUID WEIGHT 15082 lb
FLUID GALLONS 2011 gal (US)
TOTAL WEIGHT 55049 lb
Shipping Dimensions:
