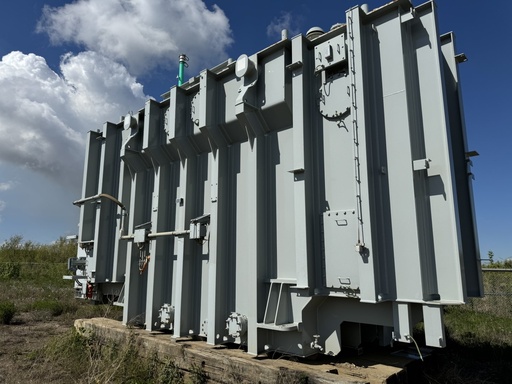

KVA: 80000/106400/132800 KVA
Manufacturer: Hyundai
Type: TM1159
Phase: Three
HERTZ: 60
CLASS: ONAN/ONAF/ONAF
TEMPERATURE RISE: 65/65 °C
IMPEDANCE: 14.371/13.947/13.384
UL/CSA Rated: UL-CSA
Primary - First: 72000 V
Primary - First Vector: Wye
Primary - First BIL: 350 kV
Secondary - First: 13800 V
Secondary - First Vector: Delta
Secondary - First BIL: 110 kV
HV BUSHING LOCATION: Top
LV BUSHING LOCATION: Top
HV ARRESTERS: Yes
On load tap changer: Yes
GENERATOR STEP-UP: Yes
CORE & COIL WEIGHT: 127685 lb
TANK & FITTINGS WEIGHT: 141123 lb
FLUID WEIGHT: 10192 lb
TOTAL WEIGHT: 276500 lb
TOTAL DIMENSIONS: 28'6"L x 9'6"W x 13'H
FLUID TYPE: Mineral Oil
LIQUID LEVEL GAUGE: Yes
DRAIN & TEST VALVE: Yes
TEMPERATURE WINDING GAUGE: Yes
Conservator: Yes
