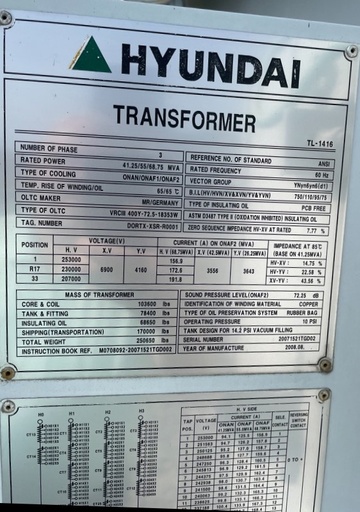

One (1) 41.25/55/68.75 MVA Split Secondary Hyundai LTC Substation Transformer
3 Ph, 60 Hz, ONAN/ONAF1/ONAF2, 65 Deg C Rise, Zero Sequence Imp. 7.77%,
Oil Preservation System (Rubber Bag), All Copper Windings, Winding Temp
Gauge, Liquid Temp Gauge, Liquid Level Gauge, Vacuum Pressure Gauge,
Pressure Release Device, Drain & Sample Valve
HV: 230000 Wye BIL: 750 KV (14.75% Imp at 85 DegC)
LV(1)(42.5MVA): 6900 Wye BIL: 95 KV (22.58% Imp at 85 DegC)
LV(2)(26.25MVA): 4160 Wye BIL: 75 KV (43.56% Imp at 85 DegC)
Taps (HV): +/- 10% in 32 steps
Total Weight: 250650 lbs
Core & Coils: 103600 lbs
Tanks & Fitt: 78400 lbs
Liquid-Oil: 68650 lbs
Shipping Weight: 170000 lbs
Shipping Dimensions: 136"H x 106"W x 240"L
