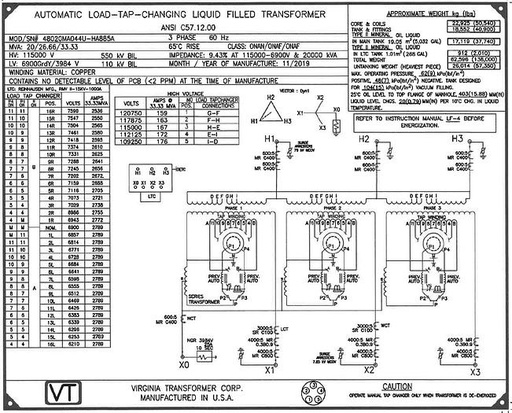

20/26.66/33.33 MVA LTC Virginia Substation Transformer
60 Hz, 3 Ph, ONAN/ONAF1/ONAF2, 65 Deg C Rise, 9.43% Impedance,
Top-top Bushings, All Copper Windings, Liquid Level Gauge,
Liquid Temp Gauge, Winding Temp Gauge, Pressure Gauge,
Pressure Release Valve, Drain & Sample Valve, LTC
HV: 115000 Delta BIL: 550 KV
LV: 6900GRDY/3984 BIL: 110 KV
Taps: 120750-117875-115000-112125-109250
LV LTC: +/- 0.625% in 32 steps
Total Weight: 138000 lbs
Core & Coils: 50540 lbs
Tank & Fitt.: 40900 lbs
Liquid - Oil: 39750 lbs (5297 Gal)
