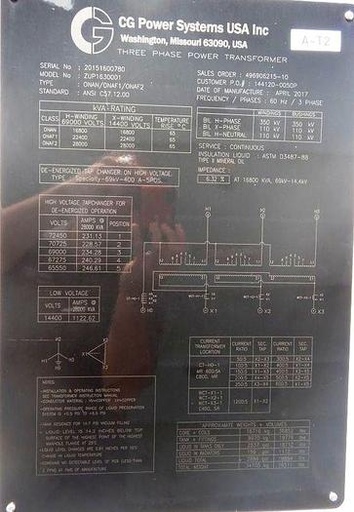

16.8/22.4/28 MVA GSU Substation Transformer
60 Hz, 3 Ph, 65 Deg C Rise, ONAN/ONAF1/ONAF2,
Side-Top Bushings, 6.12% Impedance, All Copper Windings,
Liquid Level Gauge, Liquid Temp Gauge, Winding Temp Gauge,
Pressure Gauge, Pressure Release Valve, Drain & Sample Valve
HV: 69000 Wye BIL: 350 KV
LV: 14400 Delta BIL: 110 KV
Taps: 72450-70725-69000-67275-65550
Total Weight: 76511 lbs
Shipping Weight: 75966 lbs
Liquid - Oil: 2696 Gal
Overall Dims: 127"W x 167"L x 180"H
Shipping Dims: 127"W x 167"L x 154"H
