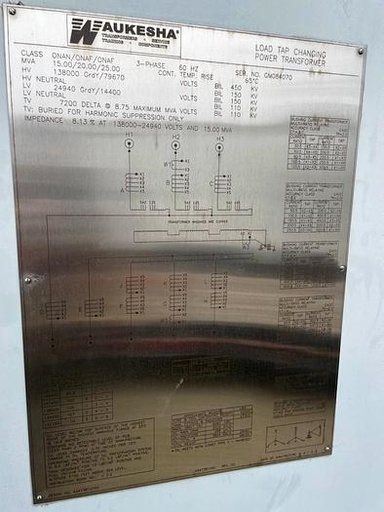

15/20/25 MVA Waukesha LTC Substation Transformer
60 Hz, 3 Ph, ONAN/ONAF/ONAF, 65 Deg C Rise, Top-top bushings,
8.31% Impedance, Liuid Temperature Gauge,Liquid Level Gauge,
Winding Temperature Gauge, Pressure Gauge, Pressure Release Valve,
Drain & Sample Valve, Buried Tertiary
HV: 138000 GRDY BIL: 450 KV
LV: 24940 GRDY/14400 BIL: 150 KV
Taps:
Total Weight: 98000 lbs
Core & Coils: 42000 lbs
Tank & Fitt.: 27320 lbs
Luquid - Oil: 28680 lbs (3824 Gal Total)
