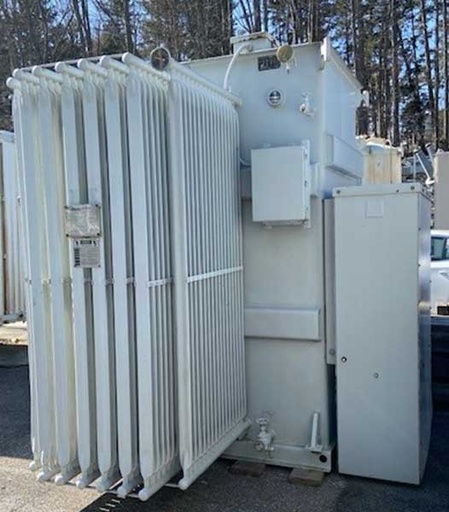

ONE (1) 7500/9375 WESTINGHOUSE, SUBSTATION TRANSFORMER, 3 PHASE 60HZ,
CLASS OA/FA, 6.87% IMPEDANCE, SIDE MOUNTED BUSHINGS,
HIGH VOLTAGE: 26400 DELTA BIL: 150KV
LOW VOLTAGE: 13200 DELTA BIL: 95KV
WITH 2 PLUS AND MINUS 2-1/2%
TOTAL WEIGHT: 32,098 LBS
CORE & COILS: 16,213 LBS
TANKS AND FITTINGS: 8,325 LBS
OIL: 7,650 LBS (1020 GALS.)
DIMENSIONS: 113"H x 138"D x 112"W
