STOCK #T-2887

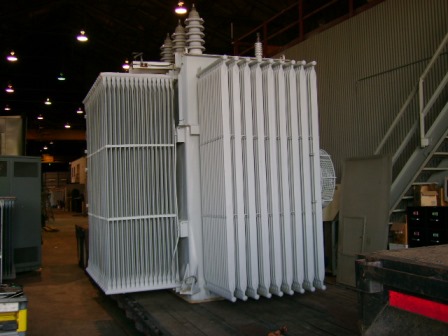

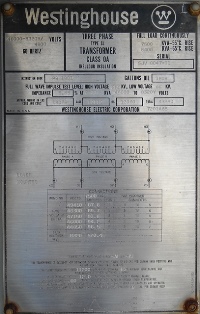

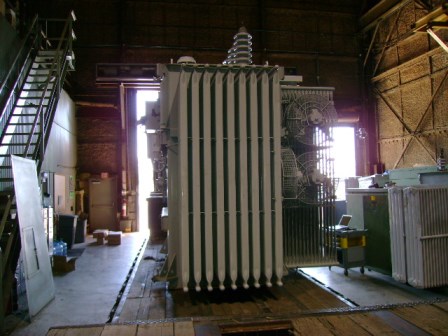

ONE (1) 7500/8420 KVA WESTINGHOUSE SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS OA, 55/65 DEG. C RISE, ALUMINUM WINDINGS, 6.85% IMPEDANCE,
DRAIN AND SAMPLE VALVE, DIAL-TYPE THERMOMETER WITH CONTACTS, LIQUID
LEVEL GAUGE WITH CONTACTS, PRESSURE VACUUM GAUGE, PRESSURE RELIEF

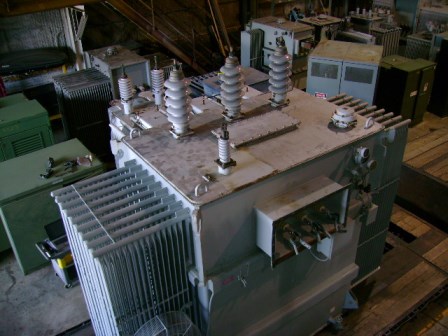

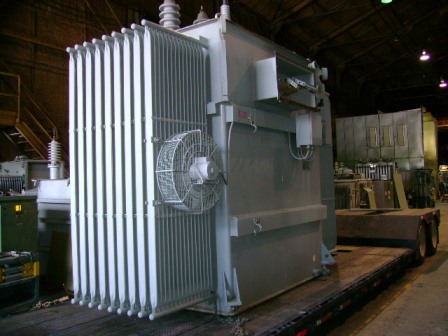

DEVICE, HV ARRESTER BRACKET, FANS, AUXILIARY CONTROL CABINET, TOP
MOUNTED HIGH VOLTAGE BUSHINGS, SIDE MOUNTED LOW VOLTAGE BUSHINGS,
TOP MOUNTED NEUTRAL BUSHING.
HV: 46000 DELTA BIL: 250 KV
LV: 8320Y/4800 BIL: 95 KV
TAPS: 49450-48300-47150-46000-44850
TOTAL WEIGHT: 43,250 LBS.
