JVT-3701:

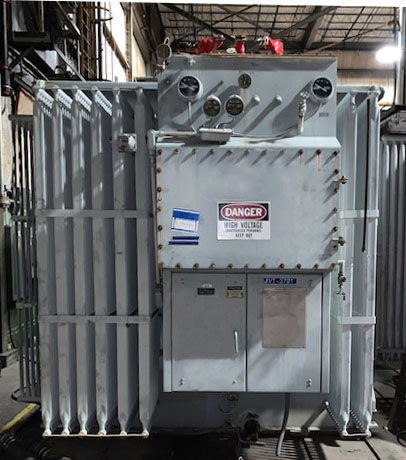

ONE (1) 7500/9375/10500 KVA GENERAL ELECTRIC LOAD TAP CHANGING TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE, 7.50% IMPEDANCE,
COPPER WINDINGS, TOP X TOP BUSHINGS,
HIGH VOLTAGE: 26400 DELTA BIL: 200 KV
LOW VOLTAGE: 4160Y/2400 BIL: 75 KV
TAPS: 27800-27100-26400-25700-25000
LTC TAPS: 4576 TO 3744 IN 32 STEPS
TOTAL WEIGHT: 52,700 LBS.
CORE & COILS: 21,400 LBS.
TANK & FIT.: 14,300 LBS.
MAIN TANK OIL: 15,840 LBS. (2,130 GALS.)
LTC OIL: 1,160 LBS. (155 GALS.)
