STOCK #T-2548:

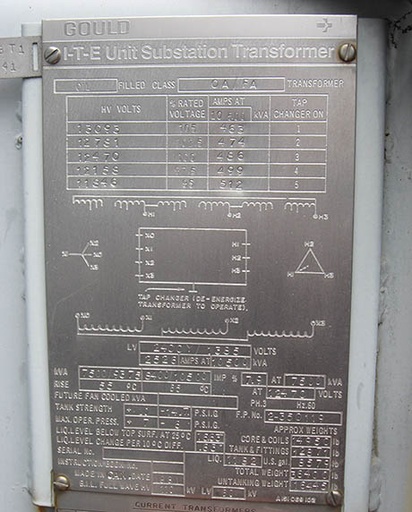

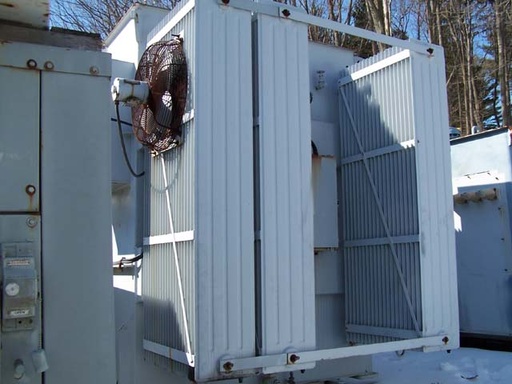

ONE (1) 7500/10500 KVA, ITE/GOULD, SUBSTATION TRANSFORMER, 3 PHASE, 60 HZ.,
CLASS OA/FA, 55/65 DEGREES C RISE, 7.9% IMPEDANCE, THROAT MOUNTED
BUSHINGS
HIGH VOLTAGE: 12470 DELTA
LOW VOLTAGE: 2400Y/1385
WITH 2 PLUS AND MINUS 2-1/2% TAPS
TOTAL WEIGHT: 36,400 LBS.
CORE & COILS: 14,950 LBS.
TANK & FITTINGS: 4,885 LBS.
OIL: 2209 GALLONS 16,565 LBS.
DIMENSIONS: 130"H X 127"W X 124"D
