STOCK #G-147

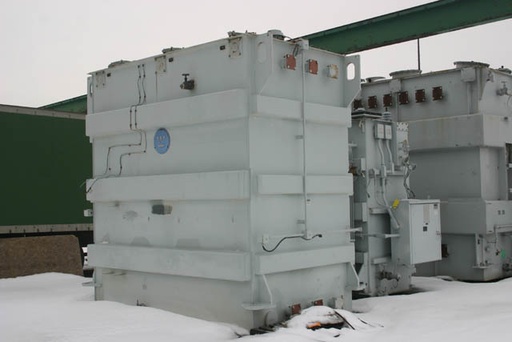

ONE (1) 60/67.2/80/89.6/100/112 MVA WESTINGHOUSE AUTO TRANSFORMER, 3 PHASE, 60
HERTZ, CLASS OA/FA/FA, 55/65 DEG. C RISE, COPPER WINDINGS, 6 CT'S HV,
6 CT'S LV, S/N MNM52611
HIGH VOLTAGE: 135300 GRDY BIL: 450 KV
LOW VOLTAGE: 115000 GRDY BIL: 450 KV
NEUTRAL: BIL: 110 KV
TAPS: 141900-138600-135300-132000-128700
TOTAL WEIGHT: 111,135 LBS.
CORE & COILS: 36,000 LBS.
TANK & FIT: 30,255 LBS.
OIL: 44,900 LBS.
APPROX. SHIP: 53,915 LBS.
SHIPPING DIMENSIONS: 153.63"H X 104"D X 170"L
BASE DIMENSIONS: 83" X 137.25"
