JVT-3619

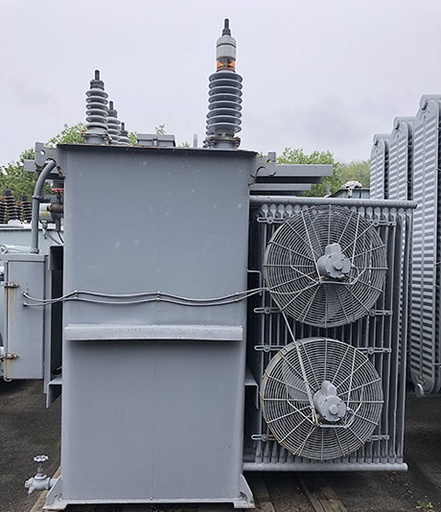

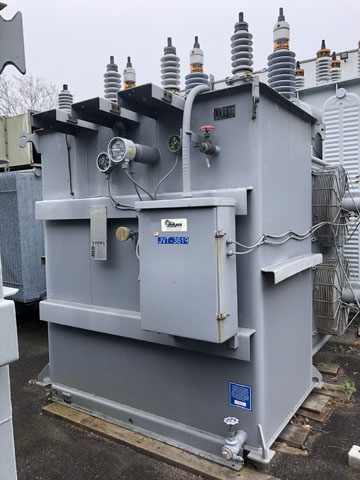

ONE (1) 5000/5600/6250/7000 KVA ABB SUBSTATION TRANSFORMER, TYPE RSL, 3 PHASE,
60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE, 6.16% IMPEDANCE, ALUMINUM
WINDINGS, COVER X COVER BUSHINGS, ARRESTER BRACKETS, MFG. 1991,

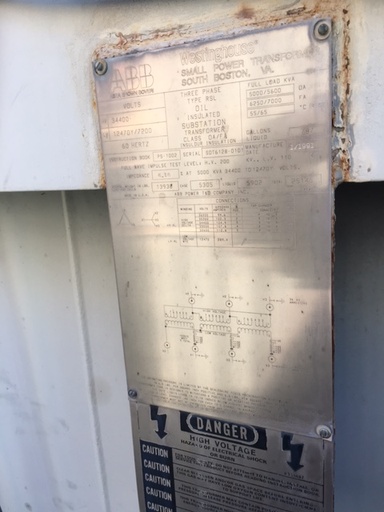

S/N SDT-6128-0101
HIGH VOLTAGE: 34400 DELTA BIL: 200 KV
LOW VOLTAGE: 12470Y/7200 BIL: 110 KV
TAPS: 36200-35300-34400-33500-32600
TOTAL WEIGHT: 25,145 LBS.
CORE & COILS: 13,938 LBS.
TANK & FIT.: 5,305 LBS.
OIL: 5,902 LBS. (787 GALS.)
