JVT-3698:

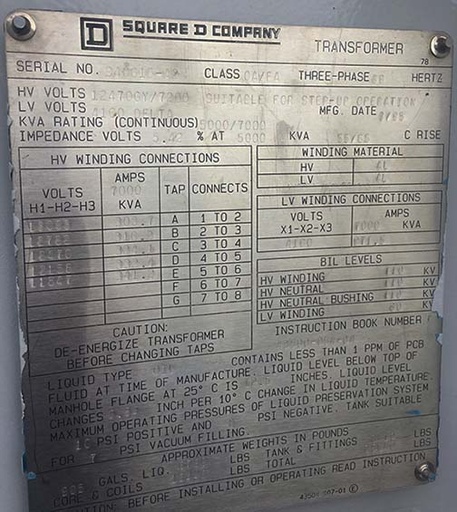

ONE (1) 5000/7000 KVA SQUARE D SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS OA/FA, 55/65 DEG. C RISE, 5.48% IMPEDANCE, ALUMINUM WINDINGS,
SIDE X SIDE BUSHINGS, MFG. 1995
HIGH VOLTAGE: 12470GRDY/7200 BIL: 110 KV
LOW VOLTAGE: 4160 DELTA BIL: 60 KV
TAPS: 13093-12782-12470-12158-11847
TOTAL WEIGHT: 25,640 LBS.
CORE & COILS: 12,550 LBS.
TANK & FIT.: 6,410 LBS.
FLUID: 6,780 LBS.
