JVT-3689

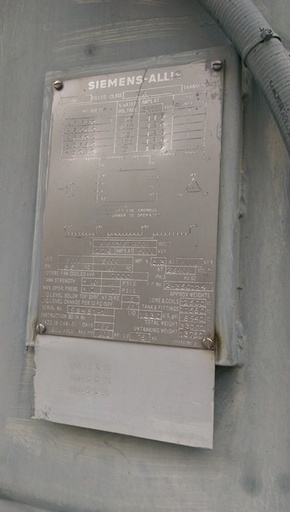

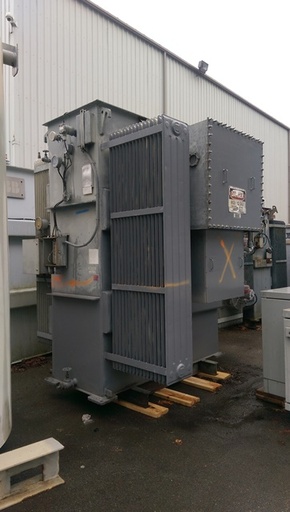

ONE (1) 5000/5600 KVA SIEMENS-ALLIS SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS OA, 55/65 DEG. C RISE, 5.3% IMPEDANCE, SIDE X SIDE BUSHINGS,
LOW VOLTAGE LOAD BREAK OIL SWITCH
HIGH VOLTAGE: 26400 DELTA BIL: 200 KV
LOW VOLTAGE: 4160Y/2400 BIL: 75 KV
TAPS: 27720-27060-26400-25740-25080
TOTAL WEIGHT: 33,000 LBS.
CORE & COILS: 12,500 LBS.
TANK & FIT.: 11,560 LBS.
OIL: 8,940 LBS. (1,230 GALS.)
