5000 KVA, Pri 12470 D, Sec 4160Y/2400, WESTINGHOUSE, AL-AL, CLASS OA   Our stock number: 40846

5000 KVA, Pri 12470 D, Sec 4160Y/2400, WESTINGHOUSE, AL-AL, CLASS OA

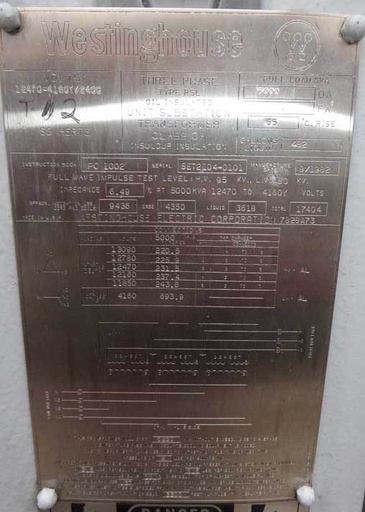

Click on picture below for larger version
5000 KVA, Pri 12470 D, Sec 4160Y/2400, WESTINGHOUSE, AL-AL, CLASS OA5000 KVA, Pri 12470 D, Sec 4160Y/2400, WESTINGHOUSE, AL-AL, CLASS OA

JVT-3600

One (1) 5000 KVA Westinghouse Substation Transformer
Three Phase, 60 Hertz, Type RSL, Class OA, 65 Deg. C Rise
6.49% Impedance, Liquid Level Gauge, Liquid Temperature Gauge
Vacuum Pressure Gauge, Pressure Relief Valve, AL Windings
QualiTROL 909-008-01 AC Sealed in Relay, Instruction Book: PC 1002


HV: 12470 Delta BIL: 95 KV
LV: 4160Y/2400 BIL: 60 KV
Taps: 13090-12780-12470-12160-11850

Total Weight: 17404 lbs.
Core & Coil: 9436 lbs.
Tank & Fittings: 4350 lbs.
Fluid (Oil): 3618 lbs. (482 Gals.)
Dimensions:
