T-6102

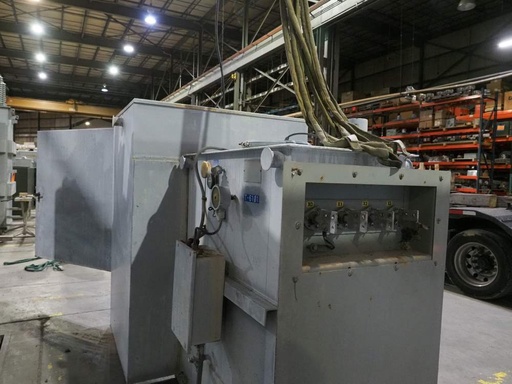

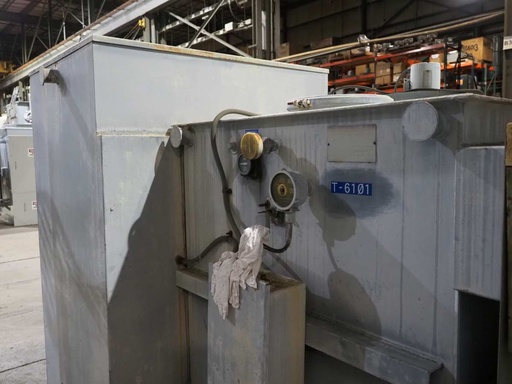

One (1) 500 KVA BALTEAU STANDARD SUBSTATION TRANSFORMER, 60 HZ, 3 PHASE,
55/65 DEG C RISE, CLASS OA/FA, 5.47 % IMP, LIQUID LEVEL GAUGE, TAP
CHANGER, DRAIN & SAMPLE VALVE, LIQUID TEMP GAUGE, VACUUM PRESSURE
GAUGE, HV COPPER WINDINGS, LV ALUMINUM WINDINGS

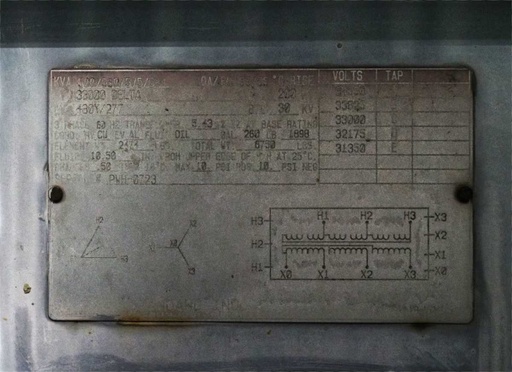

HV: 33000 DELTA 200kV BIL
LV: 480Y/277 30kV BIL
TAPS: 34650-33825-33000-32175-31350
TOTAL WEIGHT: 6750LBS
TANK & FITTS: 2378LBS
CORE & COILS: 2474LBS
LIQUID : 1898LBS (260 GAL)
DIMMS: 82.25"H x 110"L x 64"D
