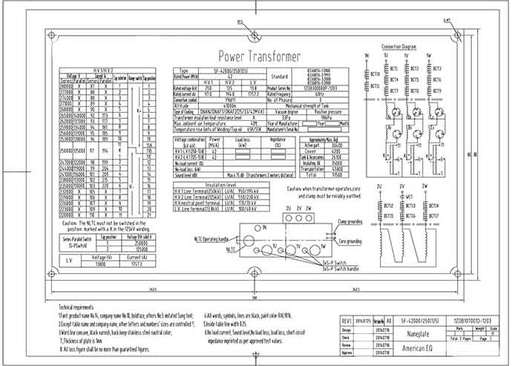

ONE (1) 42 MVA CHINT SUBSTATION TRANSFORMER,
3 PH, 50 HZ, ONAN/ONAF1/ONAF2, 55/65 DEG C RISE,
. % IMPEDANCE,
HV1: 250000 WYE BIL: 395 KV
HV2: 125000 WYE BIL: 230 KV
LV: 13800 DELTA BIL: 40 KV
HV1 TAPS: 10 UP, 10 DOWN FROM CENTER TAP
HV2 TAPS: 5 UP, 5 DOWN FROM CENTER TAP
TOTAL WEIGHT: 91500 KG
CORE & COILS: 30400 KG
TANK & FITT.: 26100 KG
LIQUID-OIL: 35000 KG
DIMENSIONS: COMING SOON
