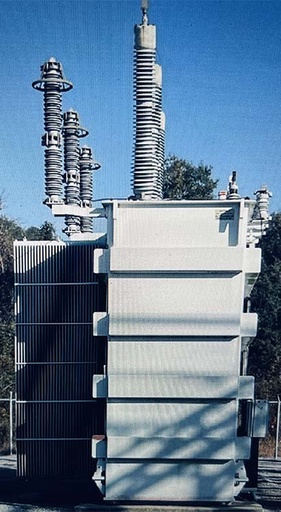

ONE (1) REBUILT ABB 40/53.3/44.8/59.7 MVA STEP DOWN POWER TRANSFORMER, 3 PHASE
60 HZ, CLASS OA/FA/FA, 55/65 DEG C RISE, 9.99% IMPEDANCE, COPPER
WINDINGS, CT ON HV, LV BUSHINGS MULTI RATIO C800/C200, ARRESTERS
ON HV AND LV SIDE WITH MOUNTING PLATFORM,
HV: 230000D HV BIL: 825KV (3 BUSHINGS TOP)
LV: 13800Y/7970 LV BIL: 110KV (4 BUSHINGS TOP)
TAPS: 241500-235750-230000-224250-218500
CORE & COILS: 96300 LBS
TANK & FITT.: 69100 LBS
OIL: 70800 LBS (9420 GAL)
TOTAL WEIGHT: 226200 LBS
SHIPPING WGT: 137500 LBS
SHIPPING DIMS: 199"L x 121"W x 201"H
