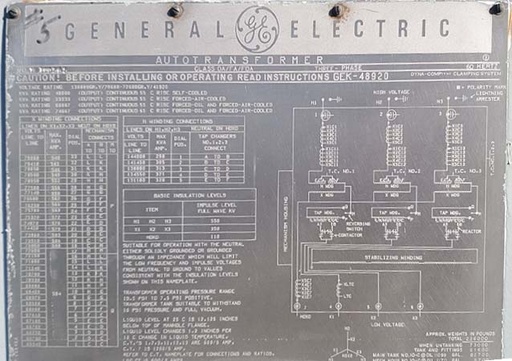

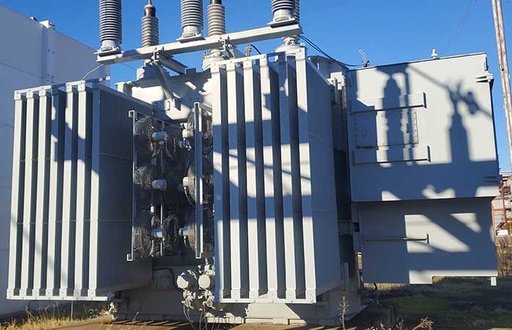

ONE (1) 40/53/67 MVA GENERAL ELECTRIC AUTOTRANSFORMER, OA/FA/FOA,
55/65 DEG C RISE, 4.20% IMPEDANCE, COPPER WINDINGS, OIL LEVEL
GAUGE, OIL TEMP GAUGE, PRESSURE RELEASE VALVE, DRAIN &
SAMPLE VALVE
HV: 138000 GRDY BIL: 550 KV
LV: 72600 GRDY BIL: 350 KV
HV TAPS: 144900-141450-138000-134550-131100
LV TAPS: 16 UP 16 DOWN
TOTAL WEIGHT: 226000 LBS
CORE & COILS: 73000 LBS
TANK & FITT.: 61600 LBS
OIL: 91400 LBS (12269 GAL)
DIMS:
