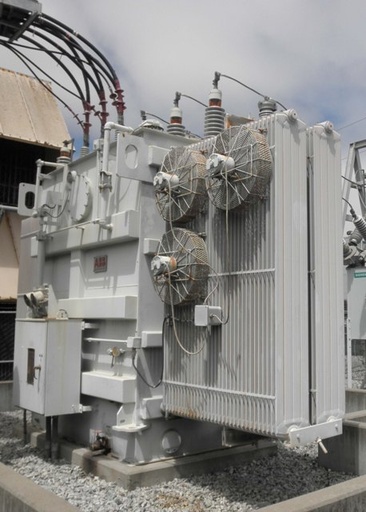

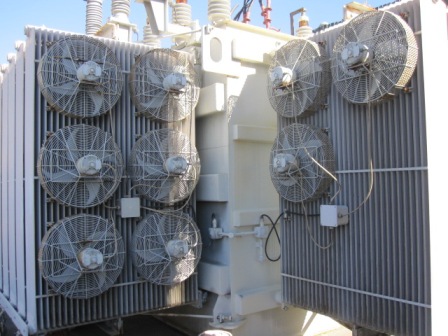

ONE (1) 30/40 MVA ABB GENERATOR STEP-UP TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS OA/FA, 65 DEG. C RISE, 7.47% IMPEDANCE, DRAIN AND SAMPLE VALVE,
DIAL TYPE THERMOMETER WITH CONTACTS, LIQUID LEVEL GAUGE WITH CONTACTS,

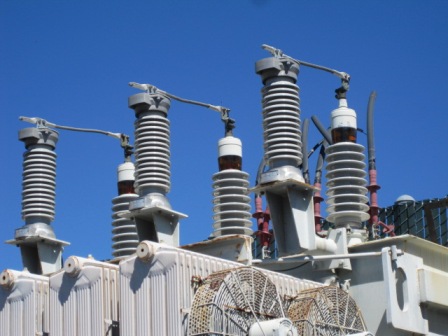

PRESSURE VACUUM GAUGE, PRESSURE RELIEF DEVICE WITH CONTACTS, HV
ARRESTERS AND BRACKET, WINDING TEMPERATURE INDICATOR, AUXILIARY
CONTROL CABINET, HV TOP ANSI 3, LV TOP ANSI 1
HIGH VOLTAGE: 64000 GRDY/36950 BIL: 350 KV
LOW VOLTAGE: 12470 DELTA BIL: 110 KV
TAPS: 67200-65600-64000-62400-60800
TOTAL WEIGHT: 102,583 LBS.
CORE & COILS: 49,900 LBS.
TANK & FIT.: 27,153 LBS.
OIL: 25,530 LBS. (3,404 GALS.)
DIMENSIONS: 191"H X 267"W X 159"D
DIMENSIONS: 143"H X 119"W X 85"D (SHIPPING)
HV BUSHING: 191"H
LV BUSHING: 153"H
