JVT-3611

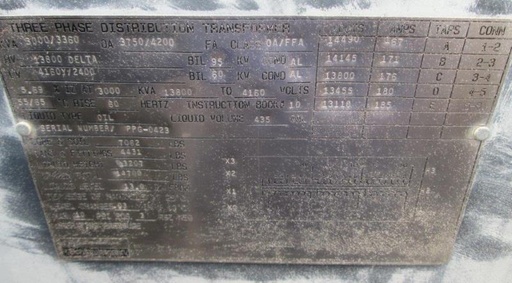

ONE (1) 3000/3360 KVA Balteau Distribution Transformer
Three Phase, 60 Hertz, Class OA/FFA, Aluminum Windings
55/65 Deg. C Rise, Impedance 5.69% at 3000 KVA
Vacuum Pressure Gauge, Liquid Temperature Gauge, Inst. Book No. 10
Liquid Level Gauge, Pressure Relief Device, Serial No. PPG-0423
Drain and Test Valve
HV: 13800 Delta HV BIL: 95 KV
LV: 4160Y/2400 LV BIL: 60 KV
Taps: 14490 - 14145 - 13800 - 13455 - 13110
Core and Coil: 7062 lbs.
Tank and Fittings: 4431 lbs.
Liquid (Oil): 3207 lbs. (435 Gals.)
Total Weight: 14700 lbs.
Dimensions: 116" W x 80" D x 74" H
Foot print: 73" W x 32" D
