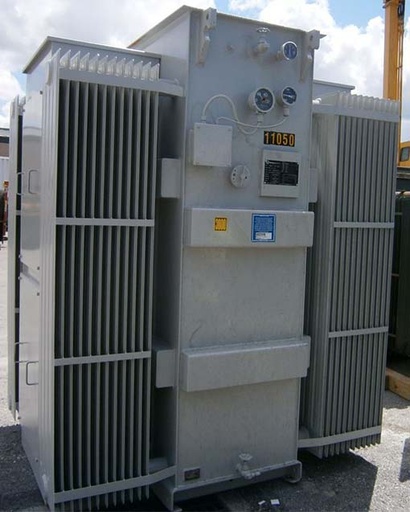

ONE (1) 3000 KVA T&R ELECTRIC SUBSTATION TRANSFORMER,
3 PH, 60 HZ, ONAN, 5.8% IMPEDANCE, 65 DEG C RISE,
LIQUID LEVEL GAUGE, LIQUID TEMP GAUGE, PRESSURE GAUGE,
PRESSURE RELEASE VALVE, DRAIN & SAMPLE VALVE, SIDE-SIDE
BUSHINGS,
HV: 13200 DELTA BIL: TBD
LV1: 2400 DELTA BIL: TBD
LV2: 4160Y/2400 BIL: TBD
TAPS: 13860-13530-13200-12870-12540
TOTAL WEIGHT: 20580 LBS
CORE & COILS:
TANK & FITT.:
LIQUID-OIL:
DIMENSIONS: 113"H x 86"W x 73"D
