STOCK #T-5018:

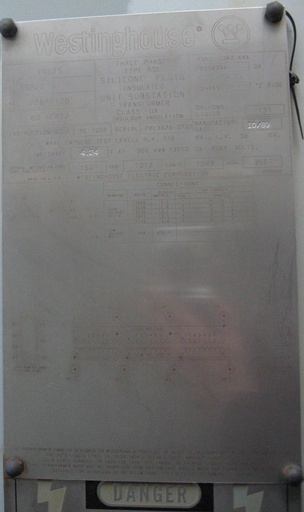

ONE (1) 300/336 KVA, WESTINGHOUSE, SILICONE FILLED, SUBSTATION TRANSFORMER,
SIDE MOUNTED BUSHINGS, CLASS OA, 4.24% IMPEDANCE, 55/65 DEGREES C
RISE, SEALED TANK DESIGN FOR INDOOR/OUTDOOR USE, WITH DIAL TYPE
THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE VACUUM GAUGE
HIGH VOLTAGE: 13.2 KV DELTA BIL: 110 KV
LOW VOLTAGE: 208Y/120 BIL: 30 KV
WITH 2 PLUS AND MINUS 2-1/2% TAPS
TOTAL WEIGHT: 3561 LBS.
DIMENSIONS: 66"H X 4'D X 5'L
