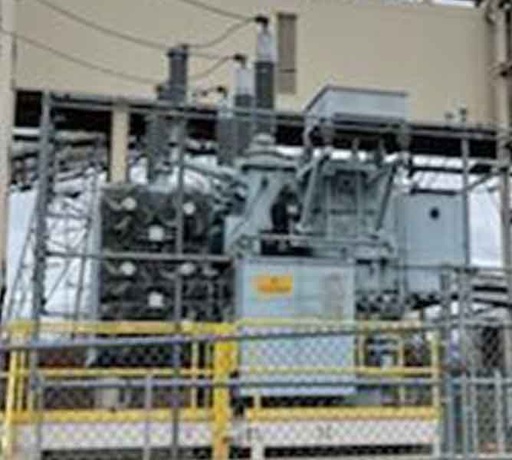

ONE (1) 30/40 MVA GE PROLEC DUAL SECONDARY SUBSTATION TRANSFORMER,
55/65 DEG C RISE, 8.005%/7.99% IMPEDANCE, LOW VOLTAGE SPLIT
WINDING, THREE (3) 1200:5 MRCT'S CLASS C800, SIX (6) 3000:5
MRCT'S CLASS C800, TWO (2) 600:5 MRCT'S CLASS C800
HV: 138000 DELTA HV BUSHING BIL: 650 KV
HV WINDING BIL: 550 KV
LV1: 4360Y/2515 LV1 BUSHING BIL: 110 KV
LV1 WINDING BIL: 75 KV
LV2: 4360Y/2515 LV2 BUSHING BIL: 110 KV
LV2 WINDING BIL: 75 KV
TAPS: 144900-141450-138000-134550-131100
TOTAL WEIGHT: 140623 LBS
CORE & COILS: 85023 LBS
TANK & FITT.: 39339 LBS
OIL: 39440 LBS (5252 GAL)
SHIPPING WEIGHT: 86064 LBS
