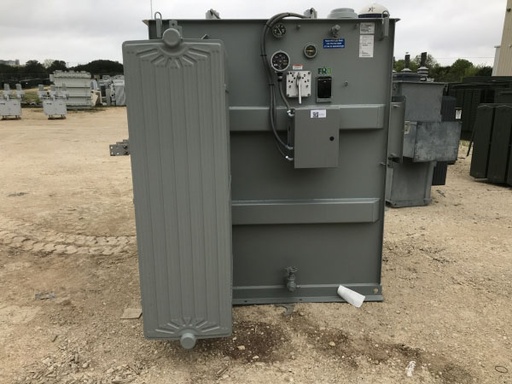

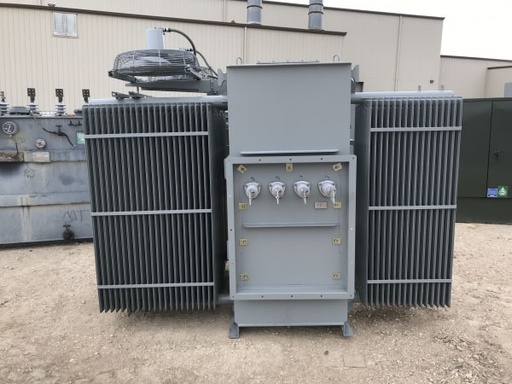

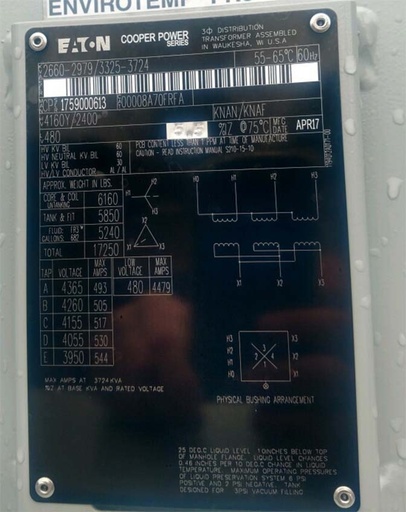

ONE (1) 2660/2979/3325/3724 UNUSED COOPER/EATON SUBSTATION TRANSFORMER,FR3,
3 PHASE, 60 HERTZ, CLASS KNAN/KNAF, 65 DEG. C RISE, 5.5% IMPEDANCE,
ALUMINUM WINDINGS, DRAIN & SAMPLE VALVE, DIAL-TYPE THERMOMETER WITH
CONTACTS, LIQUID LEVEL GAUGE, PRESSURE VACUUM GAUGE, PRESSURE RELIEF
DEVICE WITH CONTACTS, LIQUID TEMPERATURE INDICATOR WITH CONTACTS,
UPPER FILTER PRESS VALVE, MFG. 2017, S/N 1759000613
HIGH VOLTAGE: 4160Y/2400 BIL: 60 KV
LOW VOLTAGE: 480 DELTA BIL: 30 KV
TAPS: 4365-4260-4155-4055-3950
TOTAL WEIGHT: 17,250 LBS
CORE & COILS: 6,160 LBS
TANK & FITTINGS: 5,850 LBS
GAL.: (682) 5,240 LBS
HV BUSHING: 54"H
LV BUSHING: 49"H
DIMENSIONS: 100"H X 94.7" W X 116"D
