JVT-3926

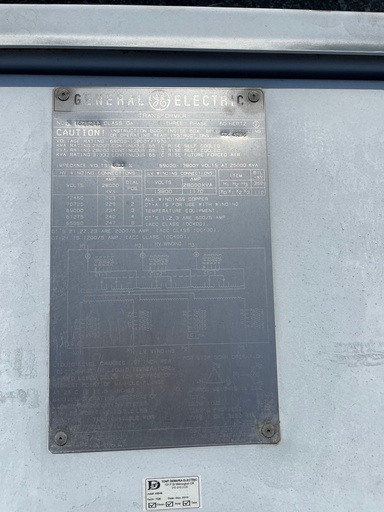

ONE (1) 25000/28000/37333 KVA GENERAL ELECTRIC SUBSTATION TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS OA, 55/65 DEGREE C RISE, 6.50% IMPEDANCE,
COPPER WINDINGS, 3 X 600:5 HV MRCT'S, 3 X 2000:5 LV MRCT'S, 1 X
1200:5 NEUTRAL MRCT, HV TOP MOUNTED BUSHINGS, LV SIDE MOUNTED
BUSHINGS, DRAIN & SAMPLE VALVE, TOP FILTER PRESS VALVE, PRESSURE
RELIEF DEVICE WITH CONTACTS, LIQUID LEVEL GAUGE WITH CONTACTS,
LIQUID TEMPERATURE INDICATOR WITH CONTACTS, WINDING TEMPERATURE
INDICATOR WITH CONTACTS, PRESSURE VACUUM GAUGE
HIGH VOLTAGE: 69000 DELTA BIL: 350 KV
LOW VOLTAGE: 13800Y/7970 BIL: 110 KV
TAPS: 72450-70725-69000-67275-65550
TOTAL WEIGHT: 94,100 LBS.
CORE & COILS: 51,700 LBS.
TANK & FIT.: 19,200 LBS.
OIL: 23,200 LBS. (3,120 GALS.)
DIMENSIONS: 208.5"H X 141"W X 176.5"L
SHIPPING: 169"H X 92.5"W X 126.5"L
