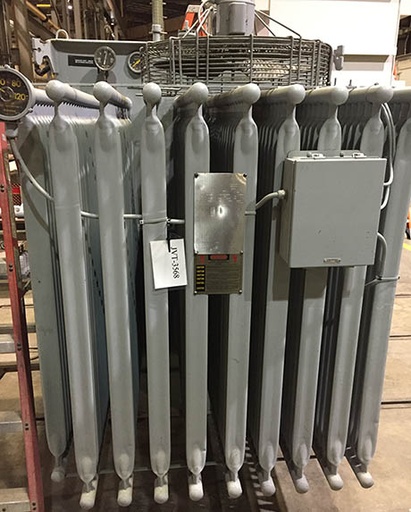

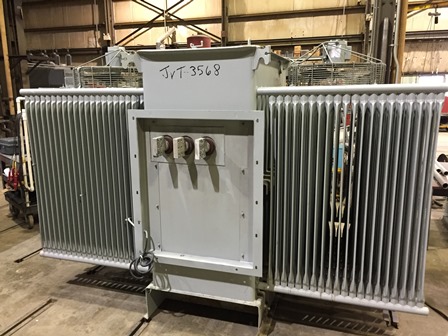

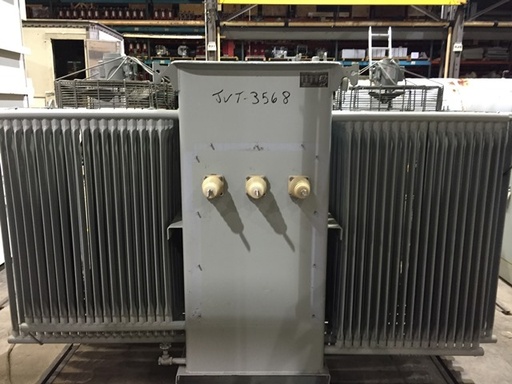

JVT-3568:

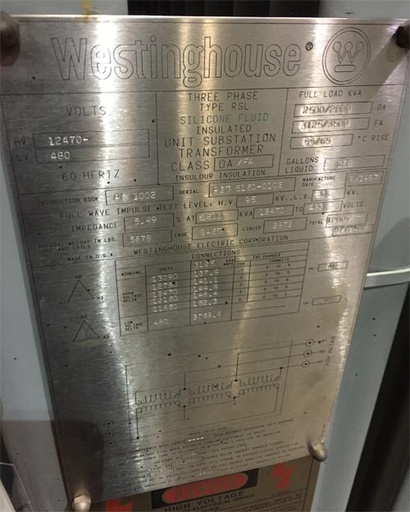

ONE (1) 2500/2800/3125/3500 KVA WESTINGHOUSE TYPE RSL SUBSTATION TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE, 5.49% IMPEDANCE,
SILICONE, ALUMINUM WINDINGS, SIDE BY SIDE BUSHINGS, S/N PCT 5160-0102
HIGH VOLTAGE: 12470 DELTA BIL: 95 KV
LOW VOLTAGE: 480 DELTA BIL: 30 KV
TAPS: 13090-12780-12470-12160-11850
TOTAL WEIGHT: 12,007 LBS.
CORE & COILS: 5,678 LBS.
TANK & FIT.: 3,457 LBS.
SILICONE: 2,872 LBS. (358 GALS.)
