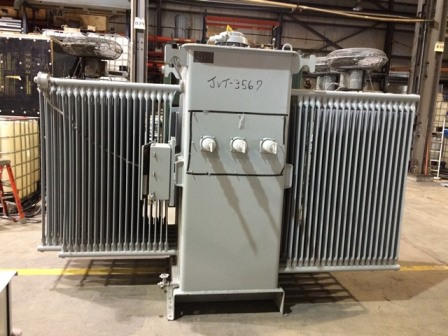

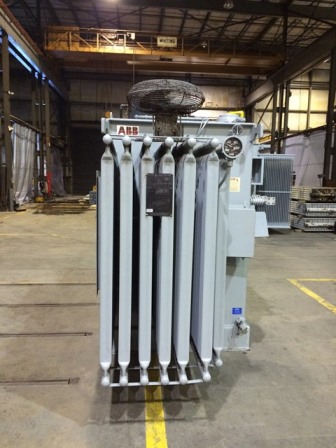

JVT-3567:

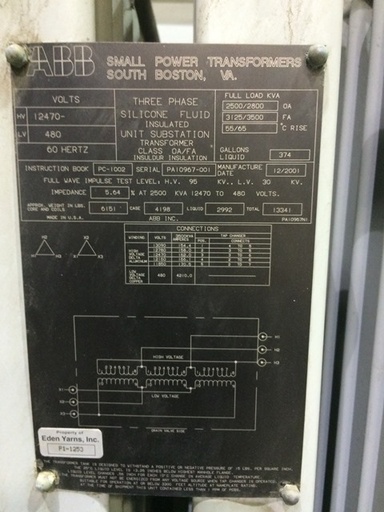

ONE (1) 2500/2800/3125/3500 KVA ABB SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS OA/FA, 55/65 DEG. C RISE, 5.64% IMPEDANCE, SIDE BY SIDE BUSHINGS
HV-ALUMINUM / LV-COPPER WINDINGS, MFG. 2001, S/N PA10967-001, SILICONE
HIGH VOLTAGE: 12470 DELTA BIL: 95 KV
LOW VOLTAGE: 480 DELTA BIL: 30 KV
TAPS: 13090-12780-12470-12158-11846
TOTAL WEIGHT: 13,341 LBS.
CORE & COILS: 6,151 LBS.
TANK & FIT.: 4,198 LBS.
SILICONE: 2,992 LBS. (374 GALS.)
