T-6084

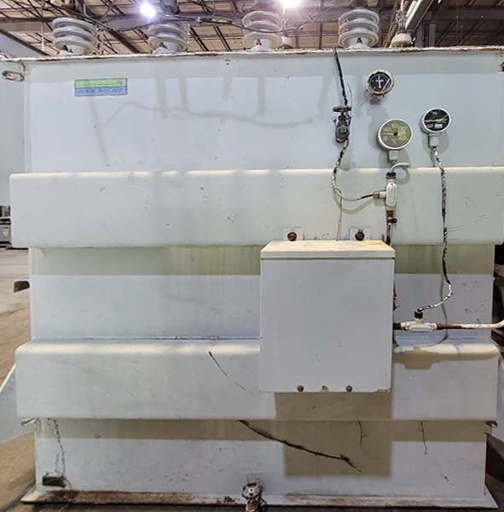

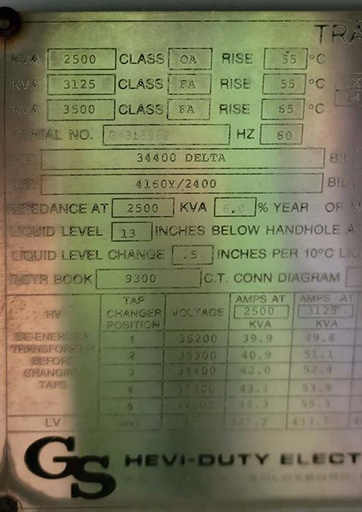

ONE (1) 2500/3125/3500 KVA HEAVY DUTY SUBSTATION TRANSFORMER, 3 PHASE, 34400D-
4160Y/2400, 60 HZ, 6.0% IMPEDANCE, 55/65 DEG RISE, HV/LV WINDINGS- AL, DRAIN &
SAMPLE VALVE, LIQUID TEMP GAUGE, LIQUID LEVEL GAUGE, VACUUM PRESSURE GAUGE,
PRESSURE RELEASE VALVE, CLASS- OA/FA/FA, MAX OPERATING PRESSURE 7.5 LBS/POS,
LIQUID LEVEL 13" BELOW HANDHOLE @25 DEG C, LIQUID LEVEL CHANGE 0.5" PER 10 DEG
CHANGE, DESIGN NO 5464324700, INSTR BOOK 9300,
HV BIL 200KV
LV BIL 75KV
TAPS: 36200-35300-34400-33500-32600
CORE & COILS: 8365 LBS
TANK & FITT.: 4915 LBS
OIL (840 GA): 6300 LBS
TOTAL WEIGHT: 19580 LBS
91" H 94" L 88" D
