T-6080

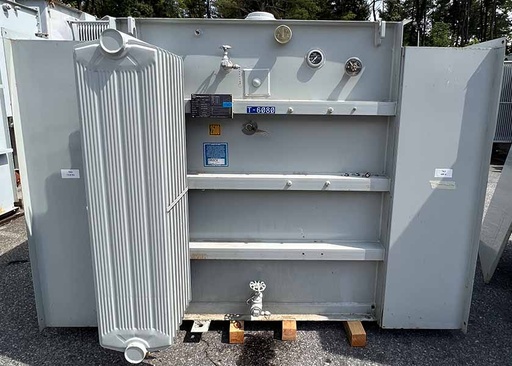

One (1) 2500KVA T&R Substation Transformer
Class OA, Liquid Level Gauge, Liquid Temp. Gauge, Pressure Gauge,
Pressure Release Valve, Drain & Sample Valve, Full length ATC's,
60 Cycle, 6.2% Impedance, 65 Deg C Rise, Side-Side Bushings

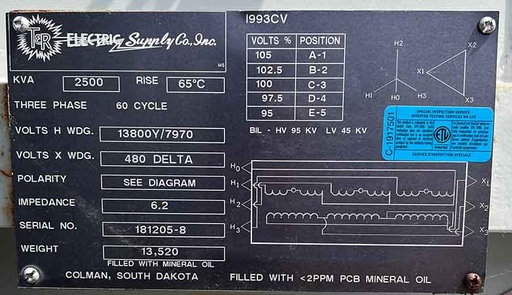

HV: 13800Y/7970 BIL: 95kv
LV: 480D BIL: 45kv
TAPS: 14400-14100-13800-13500-13200
Total Weight: 13520 LBS
Liquid (gaL): 610
DIMENSIONS: 88"H x 102"W x 83"D
