JVT-3858

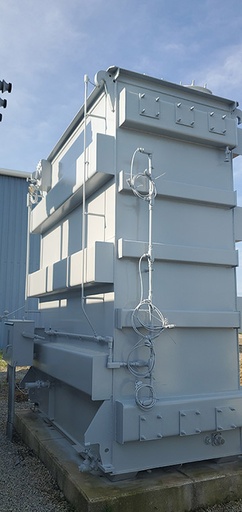

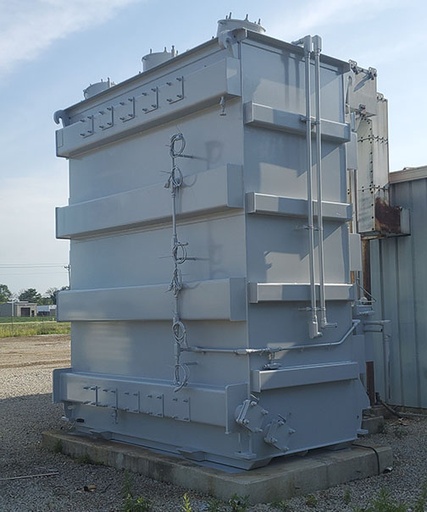

ONE (1) 24/32/40 MVA GENERAL ELECTRIC SUBSTATION TRANSFORMER
THREE PHASE, 60 HERTZ, CLASS OA/FA/FOA

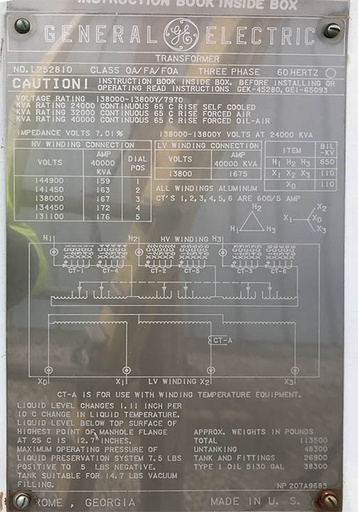

IMPEDANCE 7.01%, 65 C RISE, ALUMINUM WINDINGS
TOP-TOP BUSHINGS, WINDING TEMPERATURE GAUGE, CT's 600:5 RATIO
DRAIN & SAMPLE VALVE, LIQUID LEVEL GAUGE, LIQUID TEMPERATURE GAUGE
HV: 138000 DELTA BIL: 650 kV
LV: 13800 WYE BIL: 110 kV
HV Taps: 144900-141450-138000-134450-13110
TANK & FITT.: 26900 LBS.
CORE & COILS: 48300 LBS.
LIQUID-OIL: 38300 LBS. (5130 GALS.)
TOTAL WEIGH 113500 LBS.
OVERALL DIMENSIONS: 254"H X 214"W X 180"D
SHIPPING DIMENSIONS: 175"H X 166"W X 102"D
SHIPPING WEIGHT: 65,000 LBS
