STOCK #T-2579:

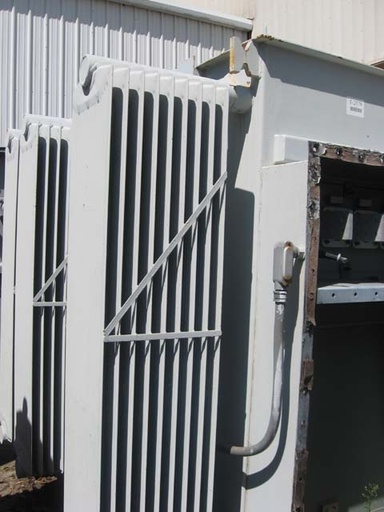

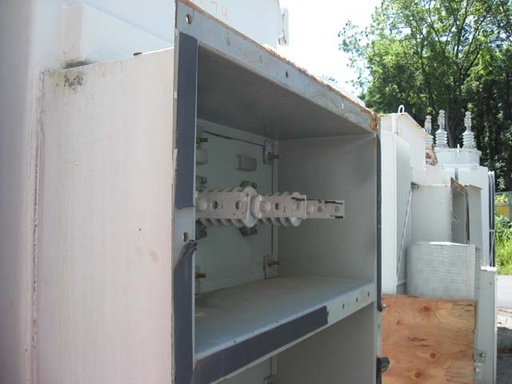

ONE (1) 2000/2576 KVA, RTE, SUBSTATION TRANSFORMER, R-TEMP FILLED, 55/65 DEG.
C RISE, 5.8% IMPEDANCE, FLANGE MOUNTED BUSHINGS, ALUMINUM WOUND, WITH
DIAL TYPE THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE VACUUM GAUGE,
SUDDEN PRESSURE RELAY, CLASS OA/FA
HIGH VOLTAGE: 12470 DELTA
LOW VOLTAGE: 480Y/277
WITH 2 PLUS AND MINUS 2-1/2% TAPS
TOTAL WEIGHT: 14,725 LBS.
CORE & COILS: 5,280 LBS.
TANK & FITTINGS: 4,275 LBS.
R-TEMP: 689 GALLONS 5,170 LBS.
DIMENSIONS: 7'6"H X 95.4"D X 85.5"W
