T-5731:

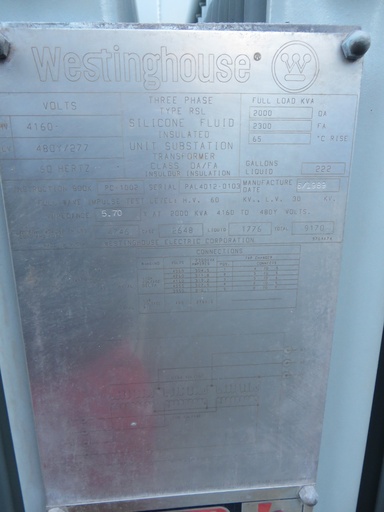

ONE (1) 2000/2300 KVA WESTINGHOUSE SUBSTATION TRANSFORMER, TYPE RSL, 3 PHASE,
60 HERTZ, CLASS OA/FA, 65 DEG. C RISE, 5.70% IMPEDANCE, ALUMINUM
WINDINGS, SILICONE FLUID, DRAIN & SAMPLE VALVE, PRESSURE RELEASE
VALVE, LIQUID TEMPERATURE GAUGE, LIQUID LEVEL GAUGE, VACUUM PRESSURE
GAUGE, PRESSURE RELIEF DEVICE, DE-ENERGIZED TAP CHANGER, INST. BOOK
PC-1002, SIDE X SIDE BUSHINGS, FULL LENGTH AIR TERMINAL CHAMBER ON
HIGH SIDE, S/N PAL4012-0103
HIGH VOLTAGE: 4160 DELTA BIL: 60 KV
LOW VOLTAGE: 480Y/277 BIL: 30 KV
TAPS: 4360-4260-4160-4055-3950
TOTAL WEIGHT: 9,170 LBS.
CORE & COILS: 4,746 LBS.
TANK & FIT.: 2,648 LBS.
SILICONE: 1,776 LBS. (222 GALS.)
DIMENSIONS: 83.5"H X 113.5"W X 68"D
