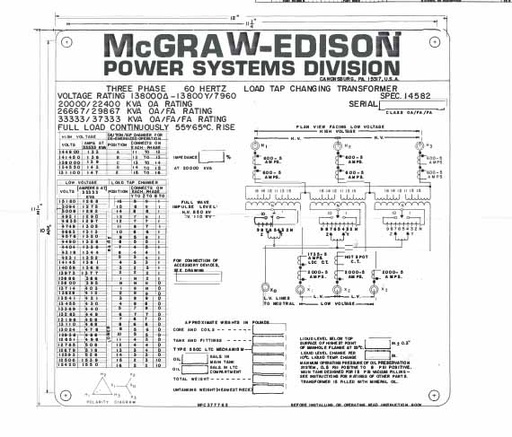

ONE (1) 20/37 MVA MCGRAW-EDISON LOAD TAP CHANGING SUBSTATION TRANSFORMER
60 HZ, 3PH, 55/65 DEG C RISE, OA/FA/FA, PRESSURE RELEASE
DEVICE, HV TAP CHANGER, LIQUID LEVEL GAUGE, LIQUID TEMP GAUGE,
COPPER WINDINGS
HV: 138000 DELTA BIL: 550 KV
LV: 13800Y/7960 BIL: 110 KV
TAPS: HV: 144900-141450-138000-134550-131100
LV: 32 STEPS, 16 UP, 16 DOWN
TOTAL WEIGHT: 182000 LBS
CORE & COILS: 82600 LBS
TANK & FITT.: 43900 LBS
LIQUID-OIL: 54600 LBS (7280 GAL)
SHIPPING WEIGHT: 120600 LBS (LESS OIL)
DIMENSIONS: 236"W x 153"D x 256"H
SHIPPING DIMS: 236"W x 153"D x 179"H
