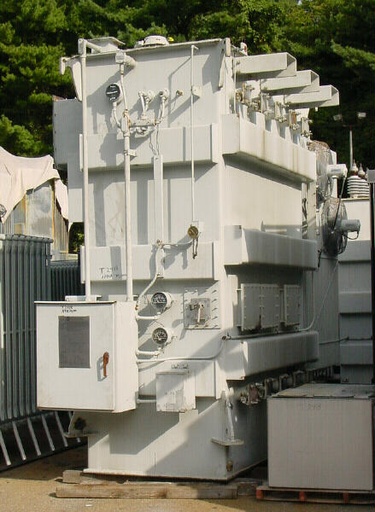

STOCK #T-2418:
ONE (1) 20/22.4/26.67/29.87 MVA, DELTA STAR, GENERATOR STEP UP TRANSFORMER,
55/65 DEGREES C RISE, CLASS OA/FFA, 3 PHASE, 60 HZ., COPPER WOUND,
TOP MOUNTED HIGH VOLTAGE BUSHINGS, THROAT MOUNTED LOW VOLTAGE BUSHINGS
TYPE OPT, WITH LIQUID LEVEL GAUGE, DIAL TYPE THERMOMETER, PRESSURE
VACUUM GAUGE, PRESSURE RELIEF DEVICE, DRAIN & SAMPLE VALVE, WITH
REMOVABLE RADIATORS
, 6.46% IMPEDANCE
HIGH VOLTAGE: 34500 GRDY/19919 BIL: 200 KV
LOW VOLTAGE: 4160 DELTA BIL: 60 KV
WITH 2 PLUS AND MINUS 2-1/2% TAPS
TOTAL WEIGHT: 81,550 LBS.
CORE & COILS: 39,400 LBS.
TANK & FITTINGS: 22,950 LBS.
OIL: 2560 GALS. 19,200 LBS.
SHIPPING DIMENSIONS: 152.5"H X 84"D X 128"L
OVERALL DIMENSIONS: 174"H X 137"D X 182"L
