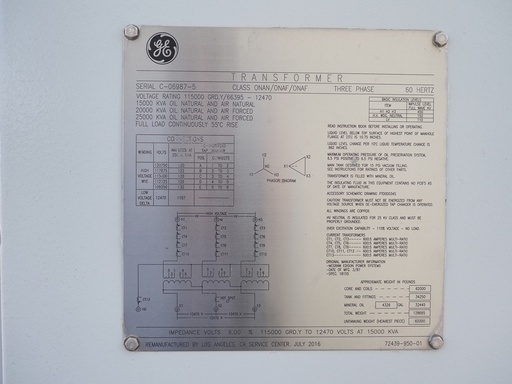

ONE (1) 15/20/25 MVA GENERAL ELECTRIC GENERATOR STEP-UP TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS ONAN/ONAF/ONAF, 55 DEG. C RISE, 6.0% IMPEDANCE, COPPER
WINDINGS, 12 X 600:6 HV MRCT'S, 1 X 600:5 HV NEUTRAL MRCT, TOP X SIDE
BUSHINGS
HIGH VOLTAGE: 115000GRDY/66395 BIL: 450 KV
LOW VOLTAGE: 12470 DELTA BIL: 150 KV
TAPS: 120750-117875-115000-112125-109250
TOTAL WEIGHT: 128,695 LBS.
CORE & COILS: 62,000 LBS.
TANK & FIT.: 34,250 LBS.
OIL: 32,445 LBS. (4,326 GALS.)
