STOCK #T-5510

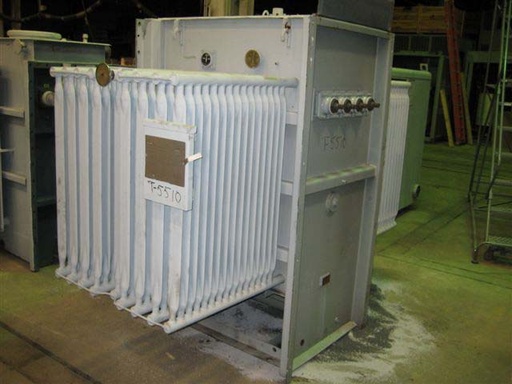

ONE (1) 1500/1725 KVA GENERAL ELECTRIC SUBSTATION TRANSFORMER, 3 PHASE, 60
HERTZ, 65 DEG. C RISE, CLASS OA/FFA, ALUMINUM WINDINGS, 5.68% IMP.,
DRAIN AND SAMPLE VALVE, DIAL TYPE THERMOMETER, LIQUID LEVEL GAUGE,
PRESSURE VACUUM GAUGE, SIDE MOUNTED BUSHINGS, TAP CHANGER ON TOP,
ALUMINUM WINDINGS
HIGH VOLTAGE: 13800 DELTA
LOW VOLTAGE: 480Y/277
TAPS: 13860-13530-13200-12870-12540
TOTAL WEIGHT: 6,635 LBS.
CORE & COILS: 2,960 LBS.
TANK & FIT.: 2,250 LBS.
OIL: 192 GALS. 1,425 LBS.
DIMENSIONS: 86"H X 58"W X 96"D
BUSHINGS: 60"H
