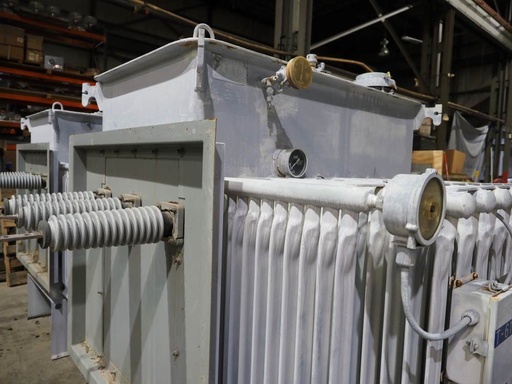

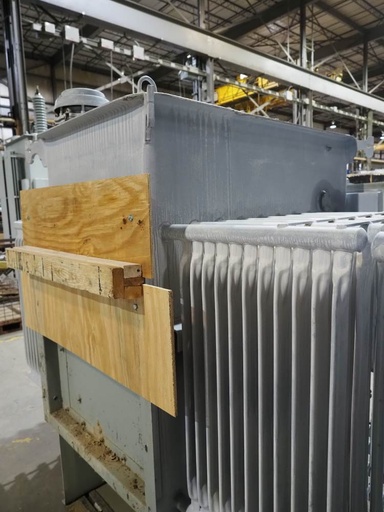

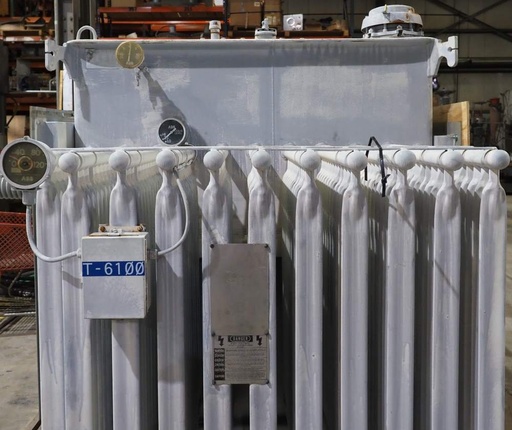

ONE (1) 1500 KVA WESTINGHOUSE SUBSTATION TRANSFORMER, 60HZ, 3 PHASE, CLASS OA,
LIQUID TEMP GAUGE, LIQUID LEVEL GAUGE, VACUUM PRESSURE GAUGE, COPPER
WINDINGS, DRAIN AND SAMPLE VALVE, TAP CHANGER, PRESSURE RELIEF VALVE,
SIDE x SIDE, 5.27% IMP

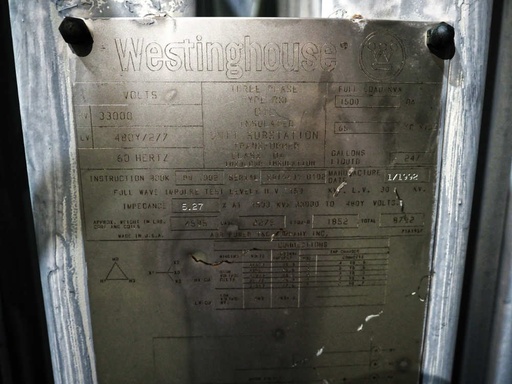

HV: 33000 V BIL: 150kV
LV: 480Y/277 BIL: 30Kv
TAPS: 34650-33825-33000-32175-31350
TOTAL WEIGHT: 8722LBS
CORE & COILS: 4595LBS
TANK & FITTS: 2275LBS
LIQUID : 1852LBS (247 gal)
DIMMS: 85"H x 71"W x 87"D
