T-5754

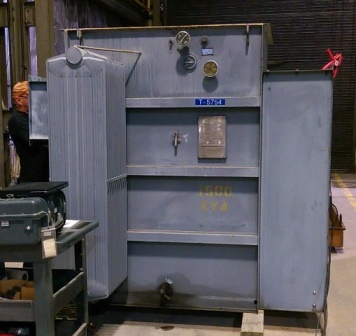

ONE (1) 1200 KVA SQUARE D SUBSTATION TRANSFORMER
3 PHASE, CLASS OA, 65 DEG C RISE, 60 HERTZ
5.82% IMPENDANCE, WINDINGS: HV - COPPER / LV - ALUMINUM

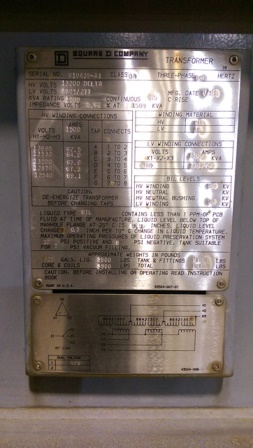

SERIAL # 910439-A1, VACUUM PRESSURE GAUGE, DRAIN & TEST VALVE
LIQUID LEVEL GAUGE, LIQUID TEMPERATURE GAUGE
HV: 13200 DELTA BIL: 95 KV
LV: 480Y/277 BIL: 30 KV
TAPS: 13860-13530-13200-12870-12540
TOTAL WGT.: 10,100 LBS
CORE & COIL: 3,500 LBS,
TANK & FITTINGS: 2,700 LBS,
LIQUID: 3,900 LBS (520 GALS)
DIMENSIONS: 77"H X 89.5"W X 81.75"D
