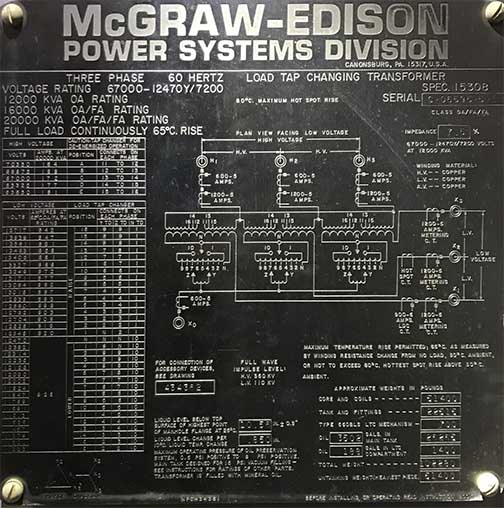

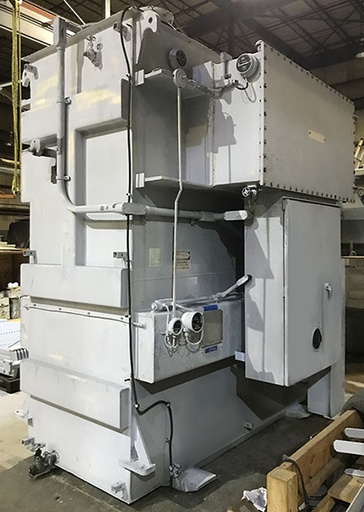

ONE (1) 12/16/20 MVA MCGRAW EDISON LOAD TAP CHANGING TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA/FA/FA, 65 DEGREE C RISE, 7.5% IMPEDANCE,
COPPER WINDINGS, SIDE MOUNTED LV, TOP MOUNTED HV AND SIDE MOUNTED NEUTRAL
BUSHINGS, DRAIN & SAMPLE VALVE, DIAL TYPE THERMOMETER, LIQUID LEVEL GUAGE,
PRESSURE RELIEF DEVICE, WINDING TEMPERATURE INDICATOR, NITROGEN PRESERVATION
SYSTEM/CABINET, S/N C-06595-5-1<
HV MRCT'S: 3 X 600:5 & 3 x 1200:5
LV MRCT'S: 1 X 900:5 & 3 X 1200:5 (LINE COMPENSATOR)
NEUTRAL/XO MRCT: 1 X 600:5
HIGH VOLTAGE: 67000 DELTA BIL: 350
LOW VOLTAGE: 12470Y/7200 BIL: 110
TAPS: 70350-68675-67000-65325-63650
LTC: 13717-11223 IN 32 STEPS
TANK & FITTINGS: 22,515 LBS.
CORE & COIL: 51,400 LBS.
MAIN TANK OIL: 26,265 LBS. (3,502 GALS.)
LTC OIL: 1,400 LBS (188 GALS.)
TOTAL WEIGHT: 102,280 LBS.
SHIPPING WEIGHT: 73,000 LBS (WITHOUT OIL)
DIMENSIONS: 196.4"H X 143"W X 158"D
SHIPPING DIMS: 160.5"H X 116.5"W X 163"D
