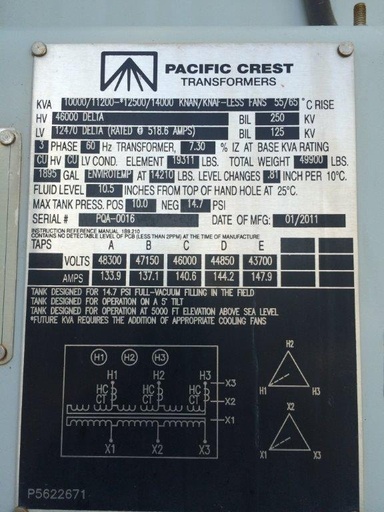

ONE (1) 10000/11200/12500/14000 KVA PACIFIC CREST SUBSTATION TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS KNAN/KNAF, 55/65 DEG. C RISE, 7.30% IMP.,
COPPER WINDINGS, ENVIROTEMP, MFG. 2011
HIGH VOLTAGE: 46000 DELTA BIL: 250 KV
LOW VOLTAGE: 12470 DELTA BIL: 125 KV
TAPS: 48300-47150-46000-44850-43700
TOTAL WEIGHT: 49,900 LBS.
CORE & COILS: 19,311 LBS.
ENVIROTEMP: 14,210 LBS. (1,895 GALS.)
APPROX. DIMS.: 126"H X 144"W X 128"L
