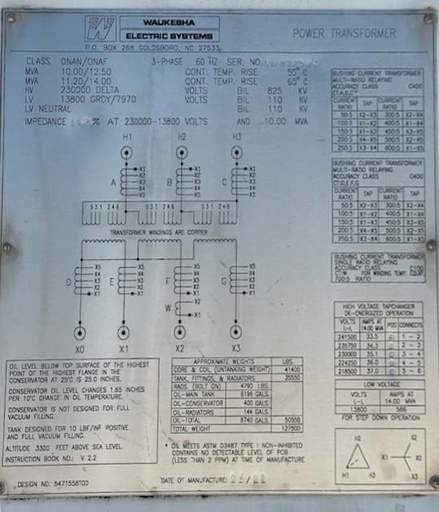

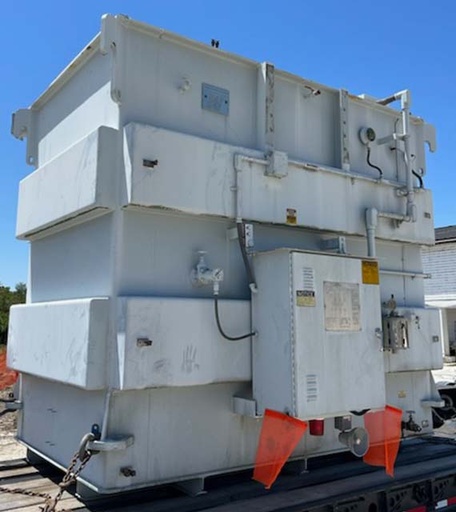

ONE (1) 10/11.2/12.5/14 MVA WAUKESHA SUBSTATION TRANSFORMER,
60 HZ, 3 PH, 55/65 DEG C RISE, ONAN/ONAF, 10.26% IMPEDANCE,
COPPER WINDINGS, OIL CONSERVATOR SYSTEM, LIQUID TEMP GAUGE,
LIQUID LEVEL GAUGE, PRESSURE RELEASE VALVE, DRAIN & SAMPLE
VALVE,
HV: 230000 DELTA BIL: 825 KV
LV: 13800GRDY/7970 BIL: 110 KV
LV NEUTRAL: BIL: 110 KV
TAPS: 241500-235750-230000-224250-218500
TOTAL WEIGHT: 127500 LBS
CORE & COILS: 41400 LBS
TANK & FITT.: 35550 LBS
LIQUID-OIL: 50550 LBS (6740 GAL)
DIMENSIONS:
