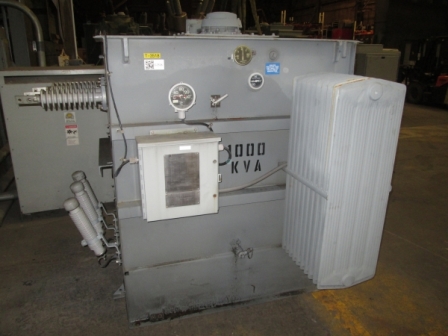

ONE (1) 1000/1150 KVA SQUARE D SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS OA/FA, 65 DEG. C RISE, 5.53% IMPEDANCE, SILICONE, DRAIN & SAMPLE
VALVE, DIAL TYPE THERMOMETER WITH CONTACTS, LIQUID LEVEL GAUGE,
PRESSURE VACUUM GAUGE, PRESSURE RELIEF VALVE, PRESSURE RELIEF DEVICE,
S/N 940694-A1, MFG. 1994

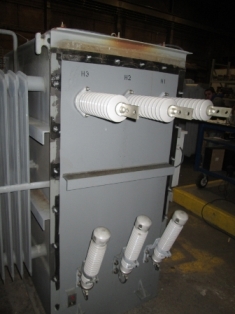

HIGH VOLTAGE: 22800 DELTA BIL: 125 KV

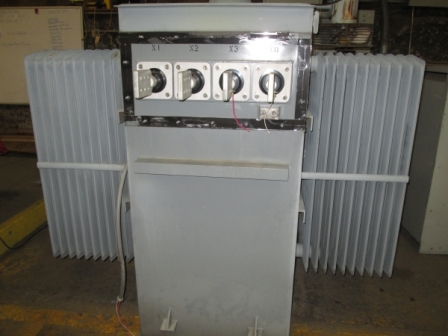

LOW VOLTAGE: 480Y/277 BIL: 30 KV
TAPS: 23940-23370-22800-22230-21660
TOTAL WEIGHT: 7,310 LBS.
CORE & COILS: 3,610 LBS.
TANK & FIT.: 2,260 LBS.
SILICONE: 2,040 LBS. (255 GALS.)
DIMENSIONS: 73"H X 85"W X 73"D
