STOCK #T-5054:

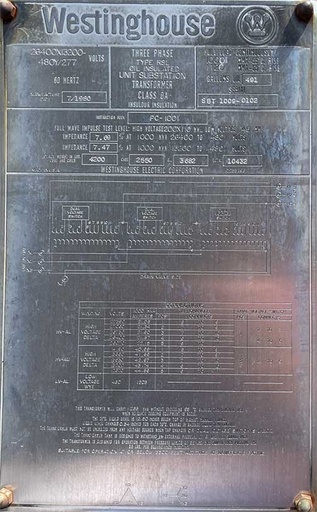

ONE (1) 1000/1120 KVA, WESTINGHOUSE, DUAL VOLTAGE SUBSTATION TRANSFORMER,
3 PHASE, 60 HZ., CLASS OA, 55/65 DEGREES C RISE, 7.63% IMPEDANCE,
HIGH VOLTAGE ON SIDE IN FULL FLANGE, LOW VOLTAGE ON OPPOSITE END
IN THROAT, WITH PRESSURE/VACUUM GAUGE, DIAL TYPE THERMOMETER, LIQUID
LEVEL GAUGE, S/N SBT1009-0102
HIGH VOLTAGE: 26.4 KV X 13.2 KV DELTA
LOW VOLTAGE: 480Y/277
TAPS: 27390-27060-26730-26400-26070
WITH 2 PLUS AND MINUS 2-1/2% TAPS
TOTAL WEIGHT: 10,432 LBS.
DIMENSIONS: 93"H X 79"W X 74"D
