T-6098

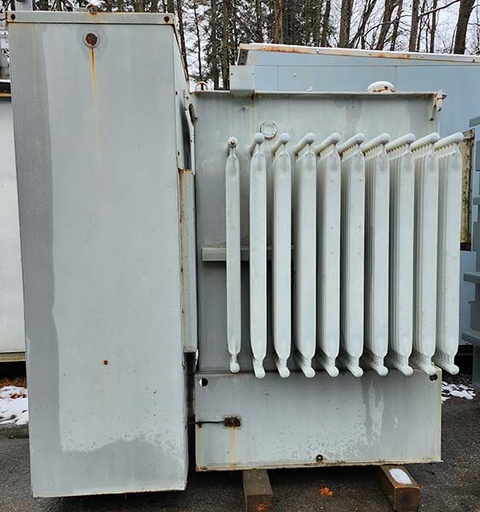

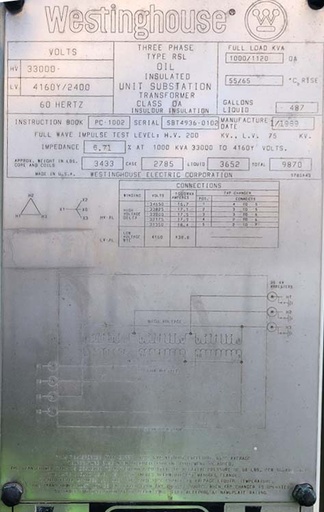

ONE (1) 1000/1120 KVA WESTINGHOUSE SUBSTATION TRANSFORMER
THREE PHASE, 60 HERTZ, 6.71% IMP. SN:SBT4936-0102
AL WINDINGS, LIQUID TEMPERATURE GAUGE, LIQUID
LEVEL GAUGE, VACUUM PRESSURE GAUGE, PRESSURE
RELIEF VALVE, DRAIN AND SAMPLE VALVE, SIDE/SIDE
BUSHINGS, INSTRUCTION BOOKLET - PC-1002
HV: 33000 KV DELTA BIL: 200KV
LV: 4160Y/2400 BIL: 75KV
TAPS: 34650-33825-33000-32175-31350
TANK AND FITTINGS: 2785 LBS.
CORE AND COIL: 3433 LBS.
FLUID - OIL: 3652 LBS. (487 GALS.)
TOTAL WEIGHT: 9870 LBS.
DIMENSIONS:
